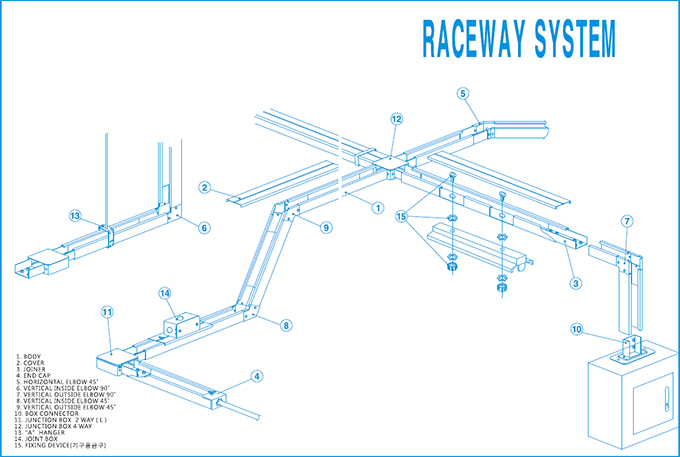

RACE WAY SYSTEMDAMOA INDESTRIAL CO., LTD.

TECHNICAL DTA LODING DATA

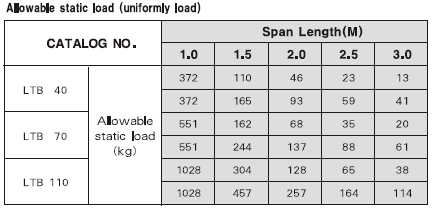

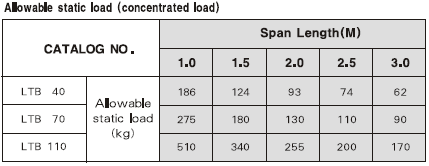

In the above table, upper figuress show allowable static load per meter and lower figures per span length.

Allowable static load, have been measured on the assumption that the maximum defleiction is less then 1/300 of the clear span between two supporting points.

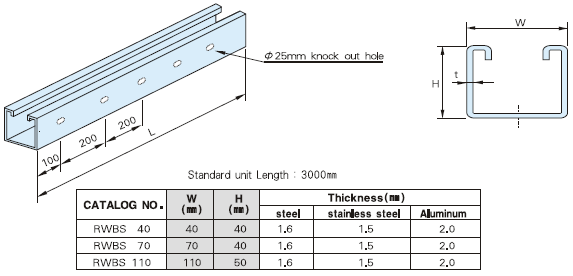

RACEWAY BODY
Meterial : Galvanized Steel Sheet or Aluminum Stainless Steel.

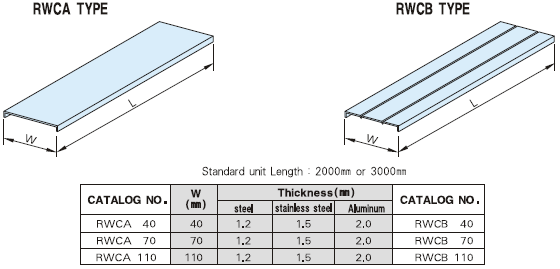

COVER
Meterial : Galvanized Steel Sheet or Stainless Steel, Aluminum.

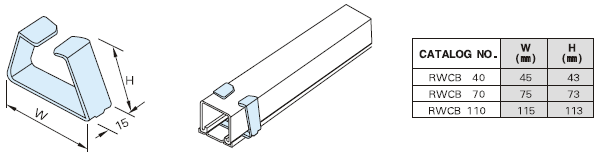

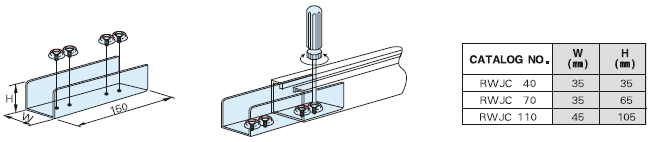

JOINER
Meterial : Galvanized Steel Sheet or Stainless Steel, Aluminum.

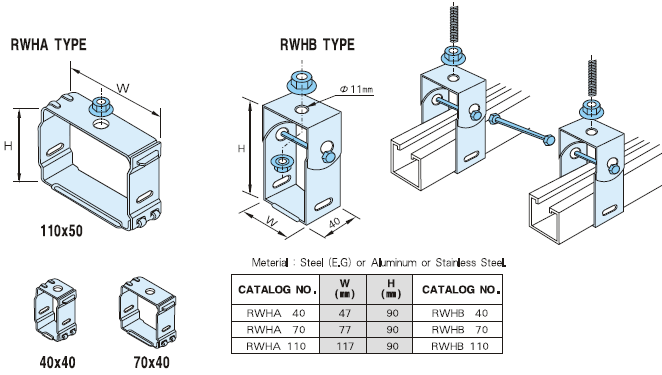

HANGER

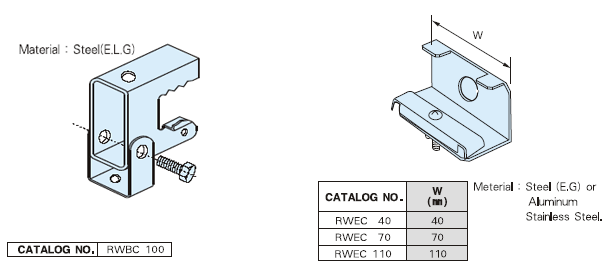

BEAM CLAMP END CAP
COVER BEND
Meterial : Stainless Steel.

기구용금구 (Zinc Die Casting)



JOINT BOX

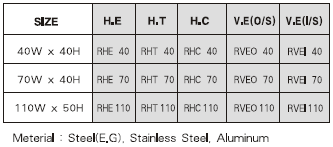

FITTINGS
Meterial : steel(E.G)or aluminum. Stainless Steel

 BOX CONNECTOR

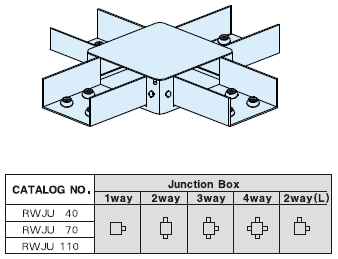

JUNCTION BOX


※ 당사 카탈로그가 필요하신분은 전화문의 주시면 필요한 자료를 받아 보실 수 있습니다.
